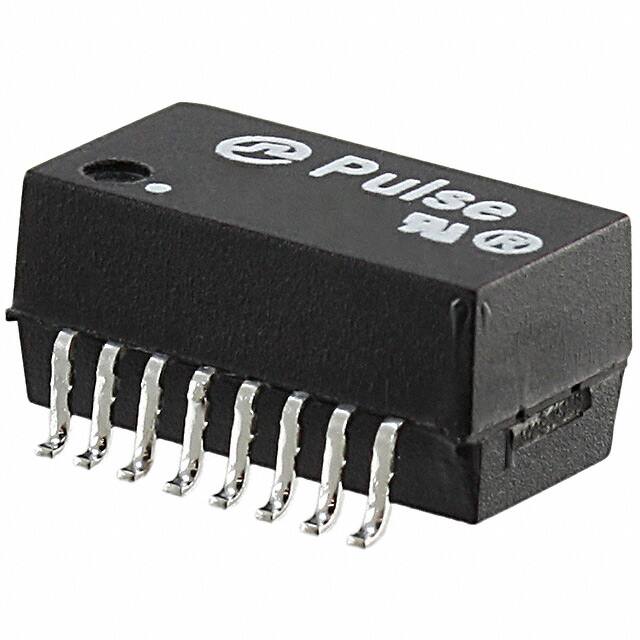

Factory Lead Time

11 Weeks

Mount

Surface Mount

Mounting Type

Surface Mount

Package / Case

SMD/SMT

Number of Pins

16

Packaging

Tube

Published

2008

Size / Dimension

0.500Lx0.280W 12.70mmx7.11mm

Part Status

Active

Moisture Sensitivity Level (MSL)

3 (168 Hours)

ECCN Code

EAR99

Max Operating Temperature

85°C

Min Operating Temperature

-40°C

Applications

SIGNAL

Additional Feature

HEIGHT DIM INCLUDES TERMINAL ALSO, TURNS RATIO: 1CT:1CT; 1CT:2.4CT

Shielding

Unshielded

Depth

9.53mm

Approval Agency

UL

Physical Dimension

L12.83XB7.11XH6.22 (mm)

Inductance

1mH, 1mH

DC Resistance (DCR)

850mOhm

Lead/Base Style

Gull Wing

Isolation Voltage

1.5kV

Transformer Type

T1/E1 (Dual)

Turns Ratio - Primary:Secondary

1:1

Return Loss

11 dB

Number of Secondary Winding

2

Number of Primary Winding

2

Height

6.22mm

Height Seated (Max)

0.245 6.22mm

Length

12.83mm

Width

7.11mm

Radiation Hardening

No

RoHS Status

RoHS Compliant

Lead Free

Lead Free
